DIAMONDDYNAMICS Hobbyhh Brushless Motor, 3530 1100kv Durable Metal Brushless Motor High Efficiency Compatible for DIY RC Glider Aircraft Plane and UAV

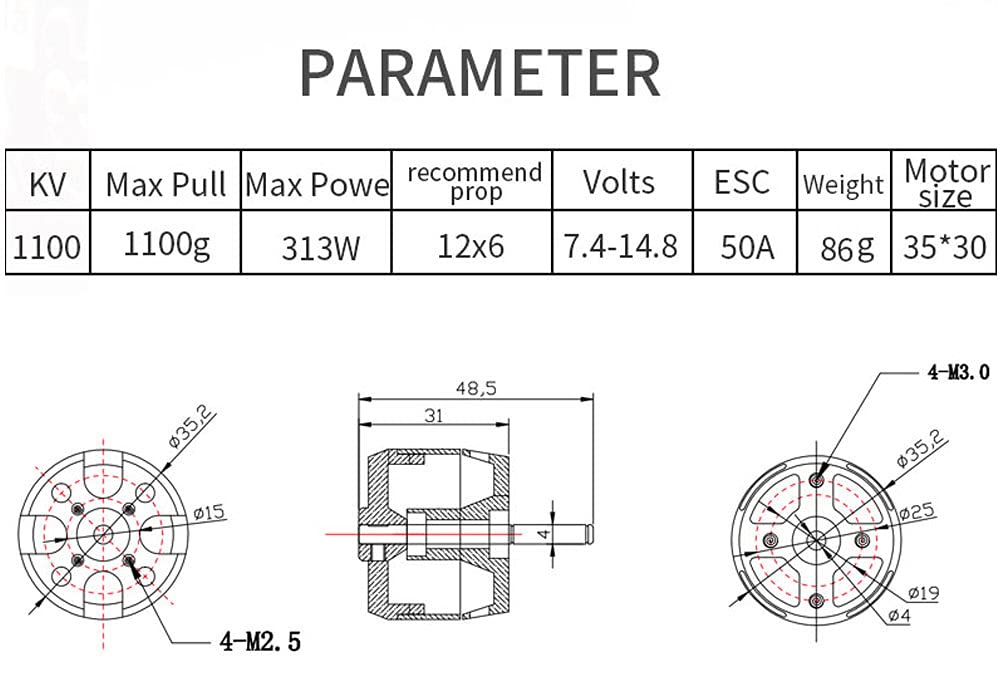

How to Use: 1. After fixing the motor, link the battery assembly to the electronic speed controller (ESC). 2. Link the corresponding colors of the three wires of the motor to the governor. If the direction of rotation is not correct, replace any two wires. 3. Connect the receiver, the third receiving channel (CH3) to the electronic governor, and start the test. Specification: Item Type: Brushless Motor Material: Aluminum Alloy, Copper Color: Black and Blue Model: 3530 Product Size: Approx. 35 x 30mm / 1.4 x 1.2in eight: 86g Package weight: 121g Package size: 60 x 60 x 60MM KV: 1100 Maximum Power: 313w Adapter Paddle: 12 x 6 Support Battery: 7.4-14.8V Recommended ESC: 50A Suitable for: RC Remote Control Aircraft Package List: 1 x 3530-1100KV Brushless Motor1 x Cross Seat 1 x Paddle Clip 3 x Heat Shrink Tube 3 x 3.5 Banana Head 8 x Screw

• Motor KV1100, power 313W, applicable voltage 7.4V-14.8V，motor output is welded with 3.5 mm banana male head and 3.5 mm banana female head
• TOP QUALITY：Made of high‑quality aluminum alloy + copper, light and portable, with stable and low‑noise working performance, stable and durable.
• EASY INSTALL：Easy to install and remove, used to replace damaged and unusable motors, simple operation, make every outdoor travel more comfortable.
• DURABLE：Strong thrust, high efficiency, low power consumption, high performance, exquisite workmanship and long service life, bringing a pleasant and relaxing experience.
• GREAT PERFORMANCE：Precisely balanced rotor is stable, has the best reliability and the largest RPM.
