Electric Linear Motion Rail Guide Ball Screw Driven Linear Slides with Cover Plate Nema23 Motor Mounts for X Y Axis CNC Router [300mm]

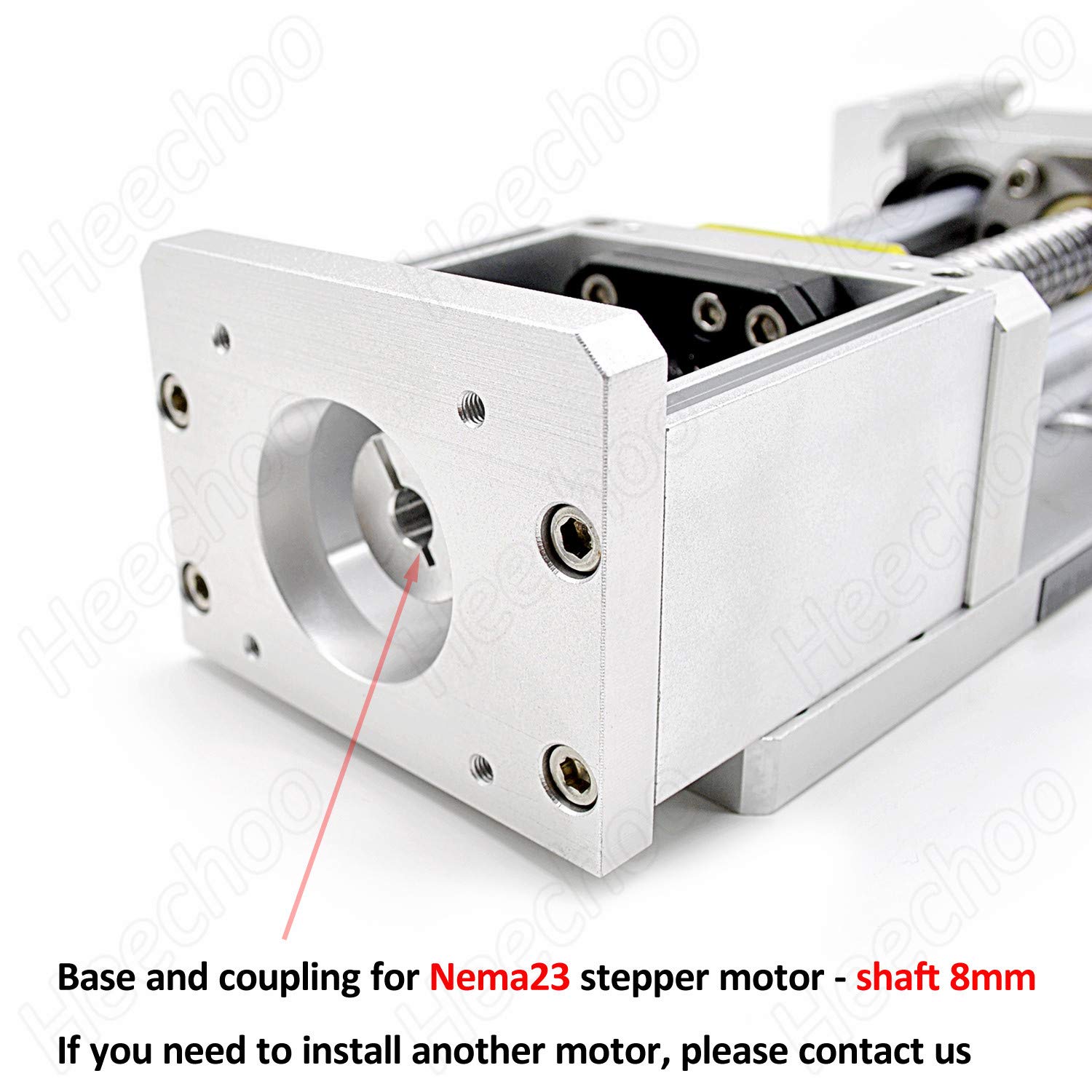

Package Included 1 x linear rail slider 1 x Nema23 motor base(not include motor) 1 x 10 to 8mm Coupling If your motor not same, please contact us and I will replace the coupling for you. Parameters 1.Work slide table: 60*120mm .Front panel height :89mm, rear plate height: 61mm. 2.Professional screw support is installed before and after to improve the linear actuator's high life and accuracy 3. Metal dust cover integrated design, perfect fit, effectively prevent 80% of chip erosion rail screw 4. Overall horizontal maximum load: 50kg, vertical installation maximum load: 20kg.Maximum running speed: 50mm/s 5. Ball screw type: 1605 (diameter 16mm, lead 5mm . Each revolution of the motor, the slider moves 5mm) 6. Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.03mm 7. Material: Aviation Aluminum 6061,sandblasted on the surface 8. Can be equipped with electric: 57 stepper motor, servo motor (customer needs different flexible configuration,We can provide suitable Motor mounts ) We have 3D drawings and CAD drawings.Can help you verify your design project in advanceIf you have any questions, please feel free to contact me for an after-sales engineer email-- heechooservice@g mail.com

• [Cover Plate]linear motion rails actuator with dust cover，It can reduce the pollution of the processing rod to the ball screw and improve the overall service life.
• [Effective Stroke] 100mm-300mm available stroke length can be freely selected, other sizes of customized can also be provided
• Standard aluminum alloy profile structure, sandblasted on the surface, beautiful and rustproof, precision hole position CNC processing.
• Convenient and Easy in use, Smooth operation, can be directly fold X axis/Y axis/X axis
